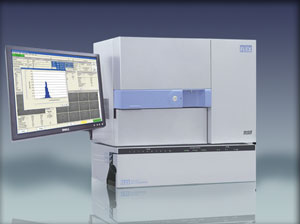

BioProfile® FLEX Analyzer
One Automated Analyzer for Fast, Comprehensive Cell Culture Analysis
BioProfile is a chemistry/cell viability modular instrument that measures up to 15 key cell culture attributes. By combining as many as five separate instruments into one easy-to-use instrument, BioProfile FLEX simplifies workflow and saves time, labor, and operating cost versus multiple instruments.
Applications of BioProfile FLEX include:
- Monitoring the progress of bioreactor runs
- Determining consumption and production of key metabolites
- Identifying growth-limiting nutrients
- Designing feeding strategies
- Calibrating bioreactor probes
- Measuring cellular respiration
- Balancing media electrolytes
- Controlling levels of waste product
Modular, Field Upgradeable System
The modular design of BioProfile FLEX can be customized with one to four analytical modules to consolidate up to 15 vital cell culture tests.
One Fast Analysis
Saves as much as 30 minutes per sample compared to using multiple instruments; analysis as fast as 2 minutes per sample.
One Integrated Data Report
Simplifies data collection, analysis, archiving, and regulatory compliance.
One Intuitive User Interface
Saves 30 or more operator steps compared to multiple instrument interfaces.
One Small, 1 μl Sample
Conserves cell culture mass and end product.
One Consolidated Workstation
Saves up to 15-20 square feet of valuable bench space and saves hours of maintenance each month compared to multiple instruments.
Patented Technology. Patents 6,287,451 / 6,837,976 / EP 1 212 609 / CA 2,375,092 / EP 1497 449 / JP 405 0078
Specifications subject to change without notice.
Optional Equipment

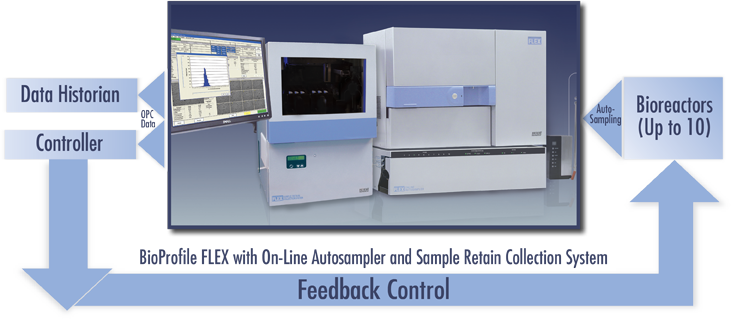

On-Line Autosampling- An optional On-Line Autosampler connects BioProfile FLEX to as many as ten bioreactors. Scheduling of sampling
into the BioProfile FLEX analyzer is user programmable. - Individual syringe or cup samples can also be analyzed during periods when on-line autosampling is not scheduled.
Sample Retain Collection System
The BioProfile FLEX Sample Retain Collection System is an optional accessory used to automatically collect and store bioreator samples in a refrigerated environment for further analysis. The addition of the Sample Retain Collection System allows user-selectable retained sample volumes from 1.0 to 50 mL and selectable storage temperature down to 3˚C. Sampling and storage can be initiated manually or on an automated schedule.
Advanced OPC Connectivity
The Nova OPC Connectivity Suite integrates BioProfile FLEX with any OPC compliant devices such as bioreactor controllers, data historians, laboratory information management systems (LIMS), and plant management systems.
Nova’s OPC Connectivity Suite features:
- Automated bidirectional flow of data and control commands
- Data archiving (DA) and historical data archiving (HDA) capability
- Easy “handshake” connection to any OPC compliant device
- Connectivity verification
- BioReactor feedback control
- Remote monitoring of BioProfile FLEX status and data
Chemistry/Gas Module
| Assay | Measurement Range | Resolution | Method |
|---|---|---|---|
| Glucose | 0.2–30.0 g/L* | 0.01g/L | Biosensor |
| Lactate | 0.2–10.0 g/L* | 0.01g/L | Biosensor |
| Glutamine | 0.2–12.0 mmol/L* | 0.01 mmol/L | Biosensor |
| Glutamate | 0.2–12.0 mmol/L* | 0.01 mmol/L | Biosensor |
| Ammonium | 0.2–25.0 mmol/L | 0.01 mmol/L | Direct ISE |
| pH | 5.000–8.000 | 0.001 | Direct ISE |
| PCO2 | 3.0–300.0 mmHg | 0.1 mmHg | Direct ISE |
| PO2 | 3.0–800.0 mmHg | 0.1 mmHg | Clarke Electrode |
| Sodium | 40–220 mmol/L | 0.1 mmol/L | Direct ISE |
| Potassium | 1.0–100.0 mmol/L | 0.01 mmol/L | Direct ISE |
| Calcium | 0.10–10.0 mmol/L | 0.01 mmol/L | Direct ISE |
Calculated Tests:O2 Saturation; CO2 Saturation; Temp. Corrected pH, PCO2, PO2
*Ranges Reflect User Selectable 1:2 Dilution
Osmolality Module
| Assay | Measurement Range | Resolution | Method |
|---|---|---|---|
| Osmolality | 0–1500 mOsm/kg | 1 mOsm/kg | Freezing Point |
Cell Density/Viability Module
| Assay | Measurement Range | Resolution | Method |
|---|---|---|---|
| Cell Diameter | 8 – 50 μm | N/A | Digital Imaging |
| Detectable Density | 50,000 – 100,000,000cells/mL** | N/A | Digital Imaging |
| Viability | 0 – 100% | N/A | Digital Imaging |
Phosphate Module
| Measurement Range | 0.20-10 mmol/L |
| Sample Size | 500 µL |
**Ranges Reflect User Selectable 1:2, 1:4, 1:5, 1:10 Dilution
IgG Module
Measurement Range: 0.10–10.00 g/L* *Ranges Reflect User Selectable 1:2 Dilution
Patented Technology. Patents 6,287,451 / 6,837,976 / EP 1 212 609 / CA 2,375,092 / EP 1497 449 / JP 405 0078
Specifications subject to change without notice.
