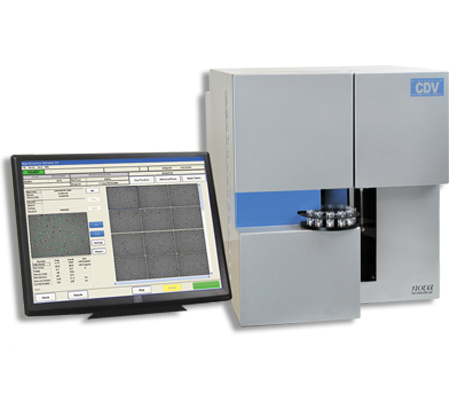

Bioprofile CDV
Cell Density and Viability
BioProfile CDV incorporates advanced, state-of-the-art technology for rapid, accurate measurement of cell density and cell viability in cell cultures. Based on the widely recognized and accepted trypan blue exclusion method, BioProfile CDV combines advanced technology in robotics, optics and computer algorithms in a highly automated analyzer:

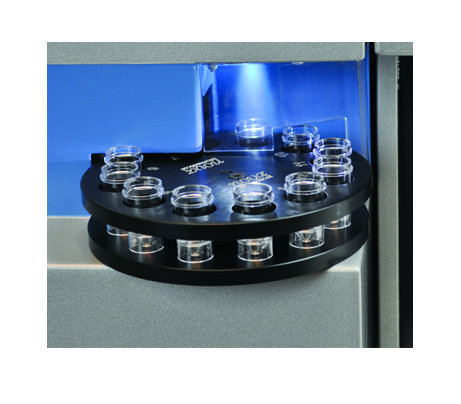

Walk-Away Sample Analysis
A fully-automated, 12-position sample tray allows walk-away sample analyses. Samples can be continuously added to the tray, allowing continuous workflow.

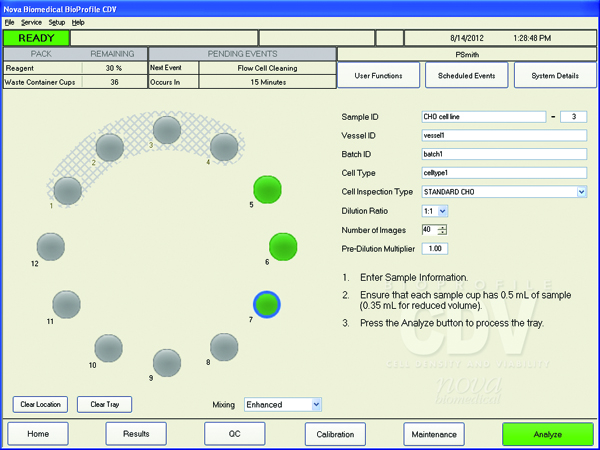

Easy-to-Use, Intuitive Interface
BioProfile CDV’s touchscreen interface includes time-saving features like an autocomplete function for faster same ID, batch ID, vessel ID, and cell type entry. Operation is as simple as entering sample information, loading sample cups, and touching" Analyze". Results are displayed for each sample as soon as testing is complete.

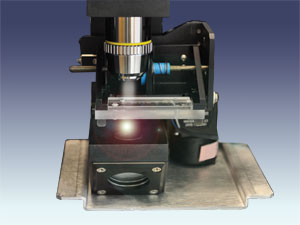

A high resolution vision system provides precise auto-focusing on a mono-layer of cells within the counting chamber and captures high-quality cell images. Images from up to 40 optical fields are captured in seconds.
Fast Cell Counts, Less Than 3 Minutes
BioProfile CDV automation, high-speed image capture and image processing combine to provide fast cell counts and high throughput. A comprehensive cell count is available in less than 3 minutes, with throughput up to 20 samples per hour. Test results include:
Total cell density
Viable cell density
Percent viability
Live cell diameter
Live cell standard deviation/histogram

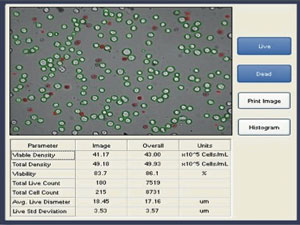

Accurate, Reproducible Cell Counts
Advanced algorithms rapidly process images from up to 40 optical fields, allowing thousands of cells to be counted for more accurate, reproducible cell counts.

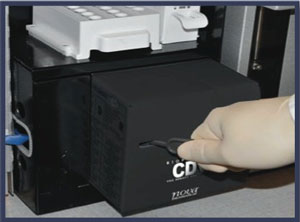

BioProfile CDV reduces operating cost by consuming minimal reagent volumes. Easy-to-use reagent cartridges analyze over 300 samples per cartridge and can be replaced in minutes.
With a high-resolution measurement range of up to 80 million cells per milliliter and a cell count analysis time of less than 3 minutes, BioProfile CDV is the ideal productivity tool for biopharmaceutical cell culturing, production, and cell-based research.
To request BioProfile CDV literature and specifications, click here.
One Automated Analyzer for Fast, Comprehensive Cell Culture Analysis
BioProfile is a chemistry/cell viability modular instrument that measures up to 15 key cell culture attributes. By combining as many as five separate instruments into one easy-to-use instrument, BioProfile FLEX simplifies workflow and saves time, labor, and operating cost versus multiple instruments.
Applications of BioProfile FLEX include:
- Monitoring the progress of bioreactor runs
- Determining consumption and production of key metabolites
- Identification of growth-limiting nutrients
- Design of feeding strategies
- Calibration of bioreactor probes
- Measurement of cellular respiration
- Balancing media electrolytes
- Control levels of waste product.
Modular, Field Upgradeable System
The modular design of BioProfile FLEX can be customized with one to four analytical modules to consolidate up to 15 vital cell culture tests.
One Fast Analysis
Saves as much as 30 minutes per sample compared to using multiple instruments; analysis as fast as 2 minutes per sample.
One Integrated Data Report
Simplifies data collection, analysis, archiving, and regulatory compliance.
One Intuitive User Interface
Saves 30 or more operator steps compared to multiple instrument interfaces
One Small, 1 mL Sample
Conserves cell culture mass and end product.
One Consolidated Workstation
Saves up to 15-20 square feet of valuable bench space and saves hours of maintenance each month compared to multiple instruments.
Patented Technology. Patents 6,287,451 / 6,837,976 / EP 1 212 609 / CA 2,375,092 / EP 1497 449 / JP 405 0078
Specifications subject to change without notice.
Optional Equipment
On-Line Autosampling- An optional On-Line Autosampler connects BioProfile FLEX to as many as ten bioreactors. Scheduling of sampling
into the BioProfile FLEX analyzer is user programmable. - Individual syringe or cup samples can also be analyzed during periods when on-line autosampling is not scheduled.
Sample Retain Collection System
The BioProfile FLEX Sample Retain Collection System is an accessory used to automatically collect and store bioreator samples in a refrigerated environment for further analysis. The addition of the Sample Retain Collection System allows user-selectable retained sample volumes from 1.0 to 50 mL and selectable storage temperature down to 3˚C. Sampling and storage can be initiated manually or on an automated schedule.
Advanced OPC Connectivity
The Nova OPC Connectivity Suite integrates BioProfile FLEX with any OPC compliant devices such as bioreactor controllers, data historians, laboratory information management systems (LIMS), and plant management systems.
Nova’s OPC Connectivity Suite features:
- Automated Bi-directional Flow of Data and Control Commands
- Data Archiving (DA) and Historical Data Archiving (HDA) Capability
- Easy “handshake” connection to any OPC compliant device
- Connectivity verification
- BioReactor Feedback Control
- Remote monitoring of BioProfile FLEX status and data
Chemistry/Gas Module
| Assay | Measurement Range | Resolution | Method |
|---|---|---|---|
| Glucose | 0.2–30.0 g/L* | 0.01g/L | Biosensor |
| Lactate | 0.2–10.0 g/L* | 0.01g/L | Biosensor |
| Glutamine | 0.2–12.0 mmol/L* | 0.01 mmol/L | Biosensor |
| Glutamate | 0.2–12.0 mmol/L* | 0.01 mmol/L | Biosensor |
| Ammonium | 0.2–25.0 mmol/L | 0.01 mmol/L | Direct ISE |
| pH | 5.000–8.000 | 0.001 | Direct ISE |
| PCO2 | 3.0–300.0 mmHg | 0.1 mmHg | Direct ISE |
| PO2 | 3.0–800.0 mmHg | 0.1 mmHg | Clarke Electrode |
| Sodium | 40–220 mmol/L | 0.1 mmol/L | Direct ISE |
| Potassium | 1.0–100.0 mmol/L | 0.01 mmol/L | Direct ISE |
| Calcium | 0.10–10.0 mmol/L | 0.01 mmol/L | Direct ISE |
Calculated Tests:O2 Saturation; CO2 Saturation; Temp. Corrected pH, PCO2, PO2
*Ranges Reflect User Selectable 1:2 Dilution
Osmolality Module
| Assay | Measurement Range | Resolution | Method |
|---|---|---|---|
| Osmolality | 0–1500 mOsm/kg | 1 mOsm/kg | Freezing Point |
Cell Density/Viability Module
| Assay | Measurement Range | Resolution | Method |
|---|---|---|---|
| Cell Diameter | 8 – 50 μm | N/A | Digital Imaging |
| Detectable Density | 50,000 – 100,000,000cells/mL** | N/A | Digital Imaging |
| Viability | 0 – 100% | N/A | Digital Imaging |
Phosphate Module
| Measurement Range | 0.20-10 mmol/L |
| Sample Size | 500 µL |
**Ranges Reflect User Selectable 1:2, 1:4, 1:5, 1:10 Dilution
IgG Module
Measurement Range: 0.10–10.00 g/L* *Ranges Reflect User Selectable 1:2 Dilution
Patented Technology. Patents 6,287,451 / 6,837,976 / EP 1 212 609 / CA 2,375,092 / EP 1497 449 / JP 405 0078
Specifications subject to change without notice.
| Level 1 | Expiration | |
| Level 1-302568 | 08/2014 | Download |
| Level 1-306565 | 12/2014 | Download |
| Level 1-212023 | 06/2014 | Download |
| Level 1-311599 | 05/2015 | Download |
| Level 1-403400 | 09/2015 | Download |
| Level 1-511232 | 10/2016 | Download |
| Level 1-528909 | 04/2017 | Download |
| Level 1-608870 | 09/2017 | Download |
| Level 1-619446 | 01/2018 | Download |
| Level 1-629905 | 04/2018 | Download |
| Level 1-703767 | 08/2018 | Download |
| Level 1-712112 | 11/2018 | Download |
| Level 1-724825 | 03/2019 | Download |
| Level 2 | Expiration | |
| Level 2-303078 | 09/2014 | Download |
| Level 2-306422 | 09/2014 | Download |
| Level 2-403402 | 09/2015 | Download |
| Level 2-310157 | 04/2015 | Download |
| Level 2-430713 | 05/2016 | Download |
| Level 2-509015 | 09/2016 | Download |
| Level 2-520878 | 01/2017 | Download |
| Level 2-601145 | 07/2017 | Download |
| Level 2-616234 | 12/2017 | Download |
| Level 2-623035 | 02/2018 | Download |
| Level 2-706637 | 09/2018 | Download |
| Level 2-716331 | 12/2018 | Download |
| Level 2-731117 | 05/2019 | Download |
| Level 3 | Expiration | |
| Level 3-306564 | 12/2014 | Download |
| Level 3-210249 | 04/2014 | Download |
| Level 3-302432 | 08/2014 | Download |
| Level 3-310330 | 04/2015 | Download |
| Level 3-14129024 | 04/2015 | Download |
| Level 3-427317 | 03/2016 | Download |
| Level 3-503505 | 08/2016 | Download |
| Level 3-514239 | 11/2016 | Download |
| Level 3-535507 | 06/2017 | Download |
| Level 3-610351 | 10/2017 | Download |
| Level 3-632745 | 05/2018 | Download |
| Level-3-706945 | 09/2018 | Download |
| Level 4 | Expiration | |
| Level 4-302433 | 08/2014 | Download |
| Level 4-307699 | 01/2015 | Download |
| Level 4-311416 | 05/2015 | Download |
| Level 4-14164031 | 12/2015 | Download |
| Level 4-505427 | 08/2016 | Download |
| Level 4-517731 | 12/2016 | Download |
| Level 4-533508 | 06/2017 | Download |
| Level 4-614643 | 11/2017 | Download |
| Level 4-705206 | 08/2018 | Download |
| Level 4-712345 | 11/2018 | Download |
| Level 5 | Expiration | |
| Level 5-301545 | 07/2014 | Download |
| Level 5-307151 | 01/2015 | Download |
| Level 5-310156 | 04/2015 | Download |
| Level 5-14125043 | 11/2015 | Download |
| Level 5-14227009 | 02/2016 | Download |
| Level 5-503456 | 08/2016 | Download |
| Level 5-511117 | 10/2016 | Download |
| Level 5-526523 | 03/2017 | Download |
| Level 5-612302 | 11/2017 | Download |
| Level 5-626740 | 03/2018 | Download |
| Level 5-701057 | 07/2018 | Download |
| Level 5-710825 | 10/2018 | Download |
| Level 5-734826 | 06/2019 | Download |
Specifications
Specifications
Sample Analysis Time:
2.5 minutes (Gases only – PO2 + PCO2) 4.0 minutes
(Chemistry/Gas & Osmolality)6.25 minutes
(All 15 tests)
Operating Temperature Range: 15-30°C (59-86°F)
Operating Relative Humidity Range: 20-85%
Sample Size: 1 mL (for all modules)
Sampling Options: Individual via syringe/cup
Automated batch using 20-position sampling tray
On-line, automated from up to ten bioreactors
Electrical Requirements: 90-264 VAC, 50 to 60 Hz (Universal Power Supply)
System Size: Height: 20 in (50 cm) Width: 26 in (66 cm) Depth: 20 in (50 cm)
System Weight: Analyzer: 94 lbs (42.6 kg) without reagents
Host Computer Monitor/CPU: 41.5 lbs (18.8 kg)
Safety Certifications: TUV: IEC 61010-1:2001
Quality Systems Certifications: TUV: ISO9001:2000 FDA Registered, OPC Compliant, PAT Compatible, 21 CFR Part 11 Compliant
Certifications & Compliance: ISO 13485:2003 Quality System Registration, IVDD, Meets IEC 61010, UL, CSA Standards FDA Labeling: For in-vitro diagnostic use.
Patented Technology. Patents 6,287,451 / 6,837,976 / EP 1 212 609 / CA 2,375,092 / EP 1497 449 / JP 405 0078
Specifications subject to change without notice.
