Nova Biomedical- Hospital Based Blood Gas and Critical Care Analyzers
Advanced Technology Blood Gas/Critical Care Analyzers
Nova Biomedical- Hospital Based Blood Gas and Critical Care Analyzers
Small Size – Big Output

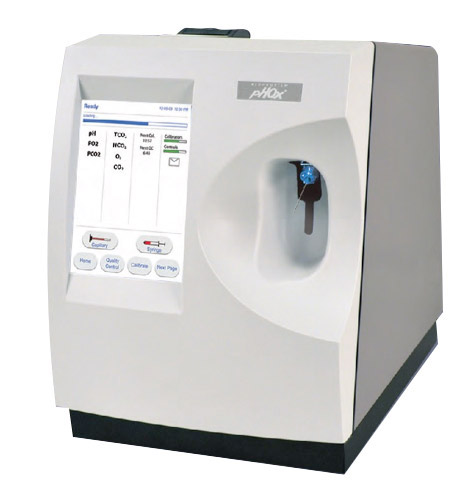

Stat Profile® pHOx® Series
Advanced Technology Blood Gas/Critical Care Analyzers

Using a unique combination of advanced optical and electrode technology, the Stat Profile pHOx analyzer series offer essential blood gas and critical care test menus in the smallest analyzers currently available. The three-test Stat Profile pHOx Basic offers the standard blood gas profile of pH, PCO2, and PO2. The six-test Stat Profile pHOx menu adds measured hematocrit, hemoglobin, and oxygen saturation to provide a complete picture of lung function and oxygen status.

Stat Profile pHOx Plus adds glucose, sodium, potassium, and a choice of chloride or ionized calcium, resulting in an ideal critical care menu in a small, space-saving instrument. Stat Profile pHOx Plus C offers both chloride and ionized calcium. Stat Profile pHOx Plus L menu includes lactate.

Menus/Tests
* Not available in the U.S.

Small Size – Big Output

Stat Profile pHOx analyzers measure only 12" wide x 12" deep x 15" high, and are light enough for easy transport on a compact cart. But don’t let their small size fool you. Stat Profile pHOx analyzers carry enough on-board reagents to perform 7500 tests and contain a full month’s supply of controls.

All Liquid Calibration System

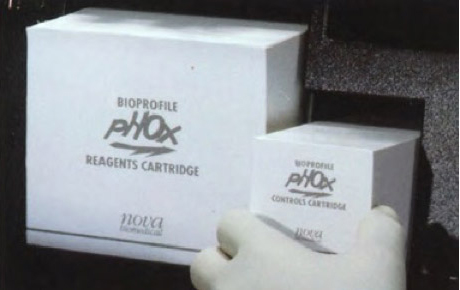

A new, liqui-only calibration system eliminates bulky gas tanks, gas regulators, gas tubing lines, and humidifiers. A single reagent pack contains all calibrators. This integrated gas and reagent package system replaces up to five individual reagent bottles and two gas tanks with a simple, snap-in reagent package. The single reagent pack also eliminates the need to maintain logs and run both calibration and QC procedures each time one of the bottles or tanks needs to be replaced.

On-Board, Automated Cartridge QC

Nova’s auto-cartridge QC is a completely automated QC system contained within a single on-board control cartridge. This unique system combines multiple levels of true controls and dedicated software allowing any level of QC to be run at any time - either on a pre-programmed schedule or on demand. This system dramatically lowers costs by reducing the time and labor required to manually perform QC.

Small Sample Volume

Blood conservation is an important initiative in every critical care department, especially the NICU. Stat Profile pHOx analyzer sample volumes are among the smallest in the industry.













Fast Stat Results

All test results from Stat Profile pHOx analyzers are available within less than a minute.

Menus/Tests
* Not available in the U.S.














Adapts to Capillary or Syringe Use

The Stat Profile pHOx sampler is designed for fast, easy use and operator safety using syringe or capillary samples. For samples in syringes, the sampling probe automatically positions itself at the optimal angle. For capillary samples, the sampler automatically presents a universal capillary sampling port in a horizontal position to prevent spillage or dripping.

Mobile Cart

Stat Profile pHOx analyzers weigh less than 20 pounds (9 kg) and are easily transported on the optional pHOx Cart with an uninterruptible power supply (UPS).







Certifications & Compliance: ISO 13485:2003 Quality System Registration, IVDD, Meets IEC 61010, UL, CSA Standards FDA Labeling: For in-vitro diagnostic use. Patented Technology. Patents 6,287,451 / 6,837,976 / EP 1 212 609 / CA 2,375,092 / EP 1497 449 / JP 405 0078 Specifications subject to change without notice.
